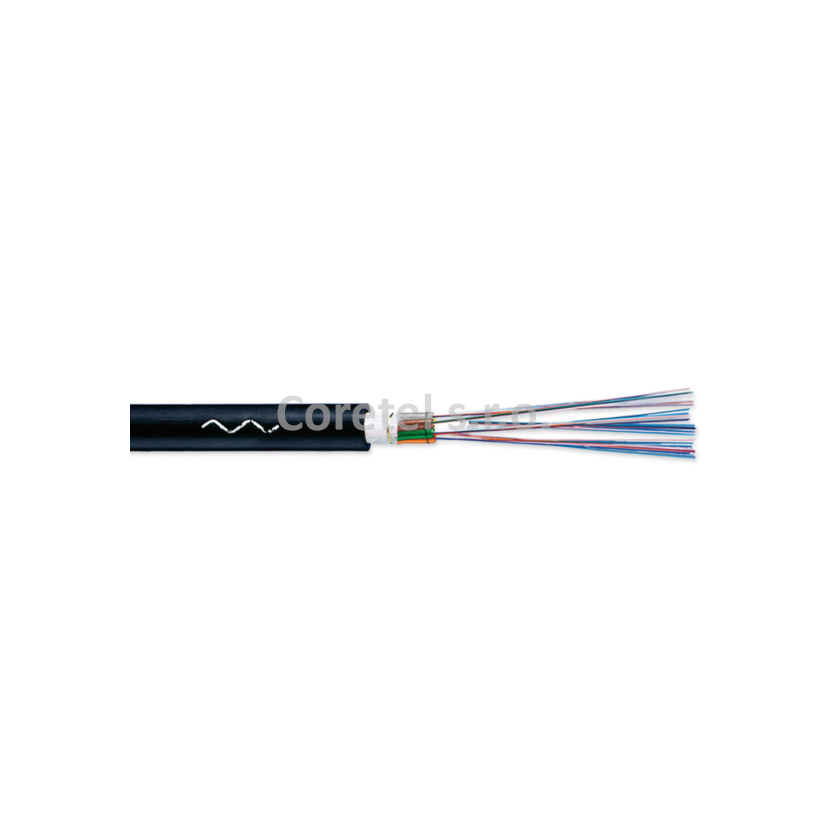

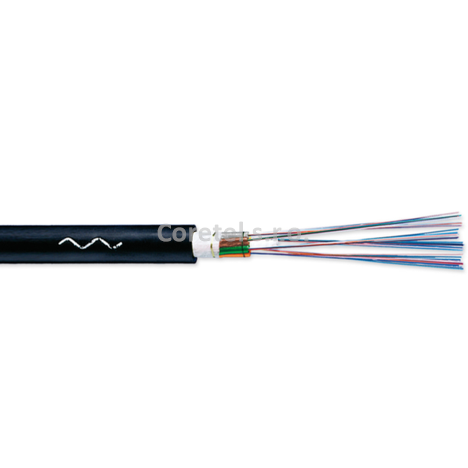

ALTOS® A-DQ(ZN)2Y 8x12 E9/125 – CORNING štandardný zemný optický kábel, 96 vlákno, G652D, vonkajší priemer 11.9mm

(0x)
Výrobca
CORNING
Kód
S1.05COR0194
EAN
Hmotnosť
0,11 kg
Dostupnosť
Na dopyt
Naša cena s DPH
2,61 € /m
Naša cena bez DPH
2,12 €/m
m

Popis

ALTOS® A-DQ(ZN)2Y 8x12 E9/125 – CORNING štandardný zemný optický kábel, 96 vlákno, G652D, vonkajší priemer 11.9mm



Product Number 096ER4-T3122A20
Cable Type Loose Tube
Environment Outdoor
Product Type Dielectric
Fiber Category Single-mode (OS2)
Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) A-DQ(ZN)2Y
Application Duct
Cable geometry Round
Standards
Fiber Standards TIA/EIA-492CAAB,  IEC 60793-2-50 Type B1.3,  ITU-T G.652.D,  ISO/IEC 11801 Ed.2.2
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Waterblocking IEC 60794-1-2 F5
Environmental Conditions
Temperature Range, Installation -5 °C  to  50 °C
Temperature Range, Operation -30 °C  to  70 °C
Temperature Range, Storage -40 °C  to  70 °C

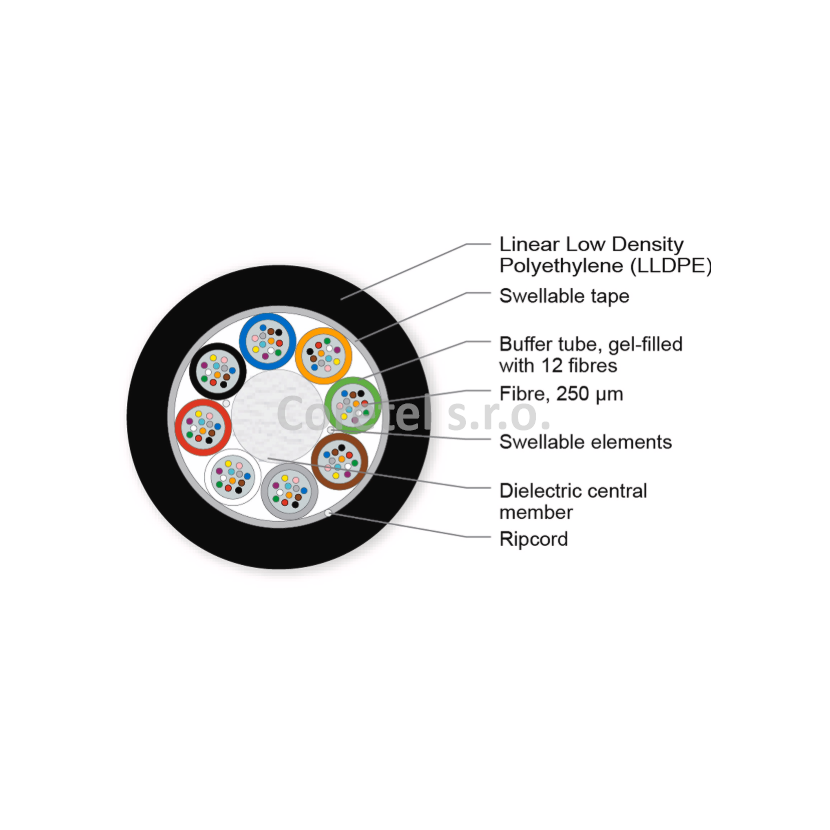

Cable Design
Cable Marking Meter - Handset - Sine - CORNING - Year -ALTOS (R) A-DQ(ZN)2Y 8X12 E9 LT 2.3
Central Element Dielectric with Polyethylene coating
Fiber Count 96
Number of Ripcords 1
Outer Jacket Color Black
Outer Jacket Material Linear Low Density Polyethylene (LLDPE)
Outer Jacket Nominal Thickness 1.5 mm
Buffer Tube Color Blue, Orange, Green, Brown, Slate, White, Red, Black
Buffer Tube Diameter 2.25 mm
Central Element Diameter 3.9 mm
Number of Active Tubes 8
Number of Tube Positions 8
Tape Water-swellable
Fiber Coloring Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube 12
Color Code Standards Telcordia
Mechanical Specifications
Crush Resistance 2000 N/10 cm
Max. Tensile Strength for Installation 2700 N
Min. Bend Radius Installation 210 mm
Min. Bend Radius Operation 180 mm
Nominal Outer Diameter 11.9 mm
Optical Characteristics
Fiber Code E
Performance Option Code 22
Fiber Category OS2
Fiber Type Single-mode (OS2) / 250 µm
Fiber Name Single-mode (OS2)
Maximum Attenuation 0.36 dB/km / 0.36 dB/km / 0.22 dB/km
Wavelengths 1310 nm / 1383 nm / 1550 nm
Fiber Compliance ITU-T G.652.D
Fiber Core Diameter 8.2 µm
Cladding diameter 125 µm
Coating diameter 242 µm
Dispersion @ 1550 nm ≤ 18 [ps/(nm*km)]
Dispersion @ 1625 nm ≤ 22 [ps/(nm*km)]
Cable cutoff wavelength 1260 nm
Mode-Field Diameter at 1310 nm 9.2 µm
Mode-Field Diameter at 1550 nm 10.4 µm
PMD Link Design Value ≤ 0.06 ps/√km
PMD maximum individual fiber ≤ 0.1 ps/√km
Dimensions
Cable Weight 113 kg/km

Parametre

Parametre produktu  ALTOS® A-DQ(ZN)2Y 8x12 E9/125 – CORNING štandardný zemný optický kábel, 96 vlákno, G652D, vonkajší priemer 11.9mm

Typ kábla
zemný kábel
Počet vlákien
96
Počet bufferov
8
Typ vlákna
G652D
Priemer kábla
11,9 mm
Použitie
Zafukovanie do HDPE
