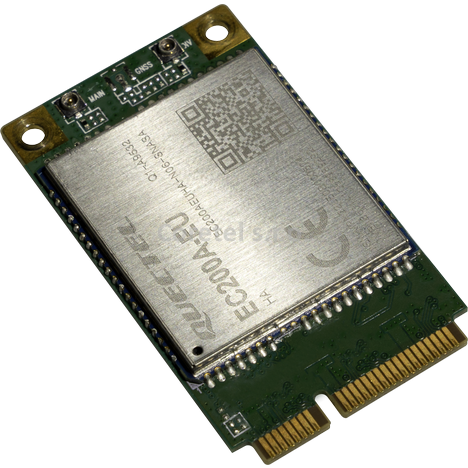

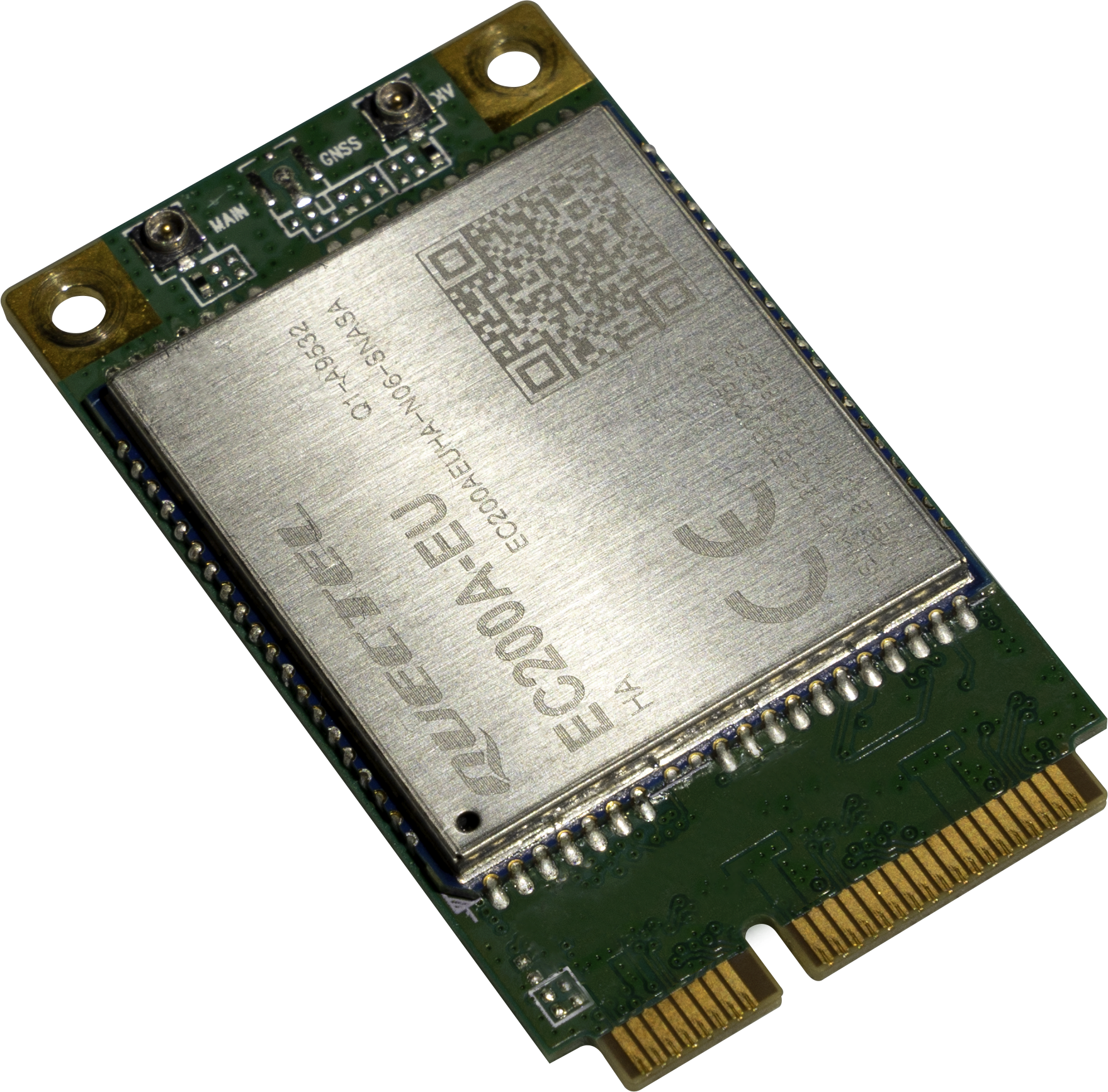

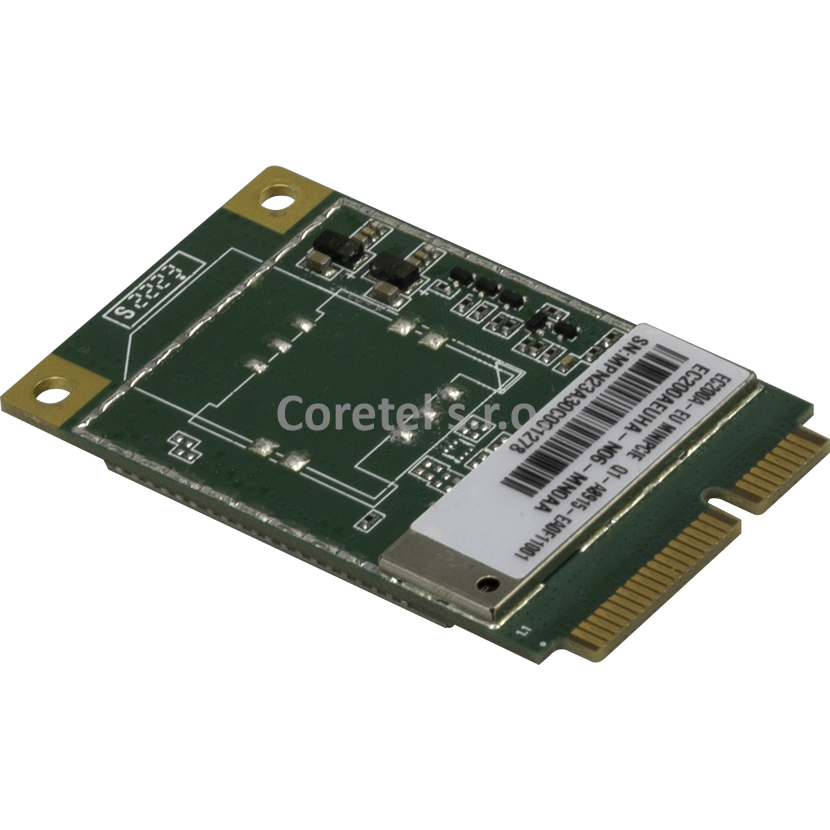

MikroTik R11eL-EC200A-EU modem LTE kat. 4, miniPCI-e

MikroTik R11eL-EC200A-EU modem LTE kat. 4, miniPCI-e



Details
Product code	R11eL-EC200A-EU
Tested ambient temperature	-35°C to 70°C

Powering

Details
Max power consumption	3 W

Mobile

Details
2G Category	Class12
2G bands	3 (1800MHz) / 8 (900MHz)
3G Category	R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands	1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC	86314105

Certification & Approvals

Details
Certification	CE, ROHS
IP	IP00
