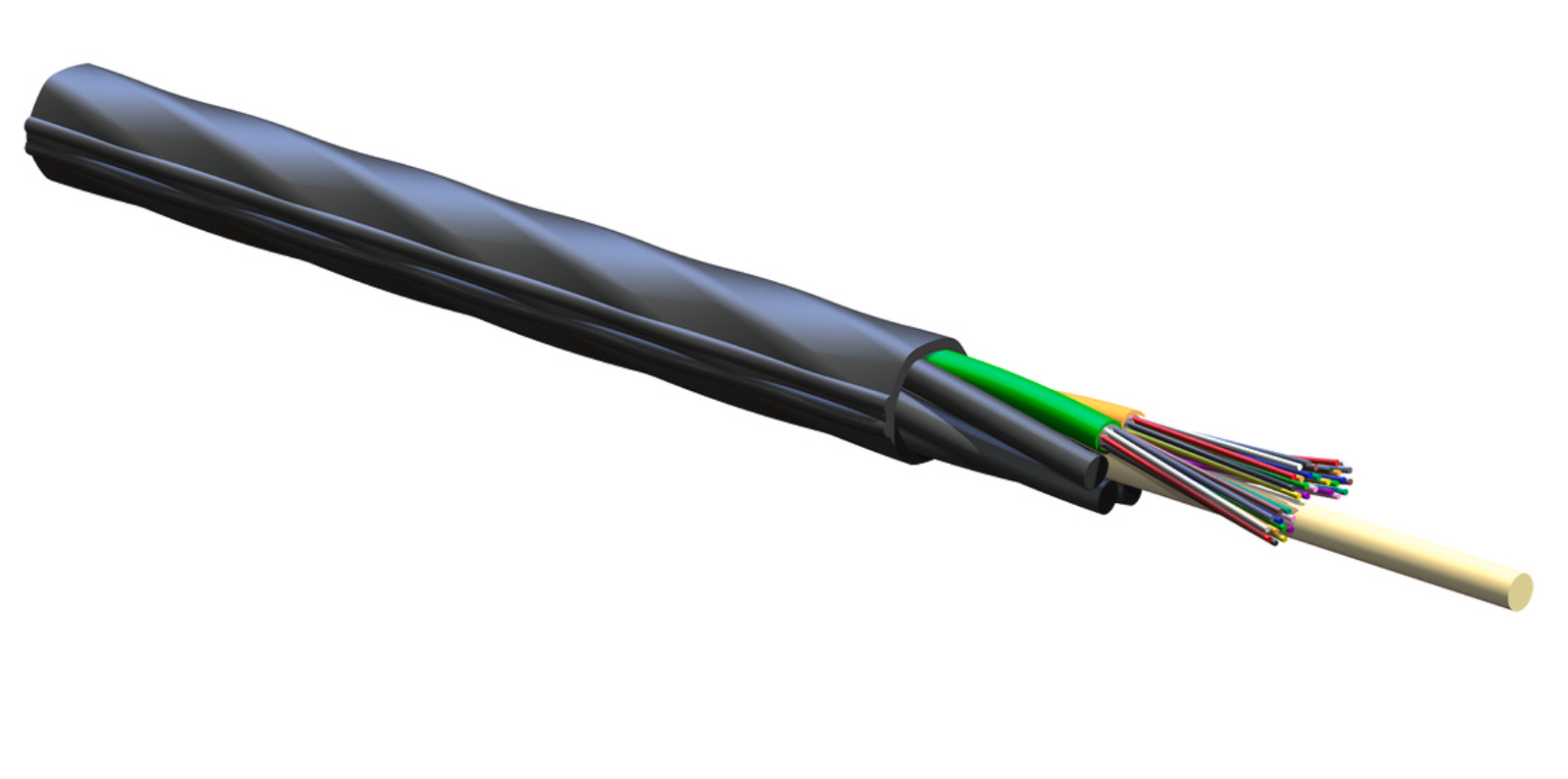

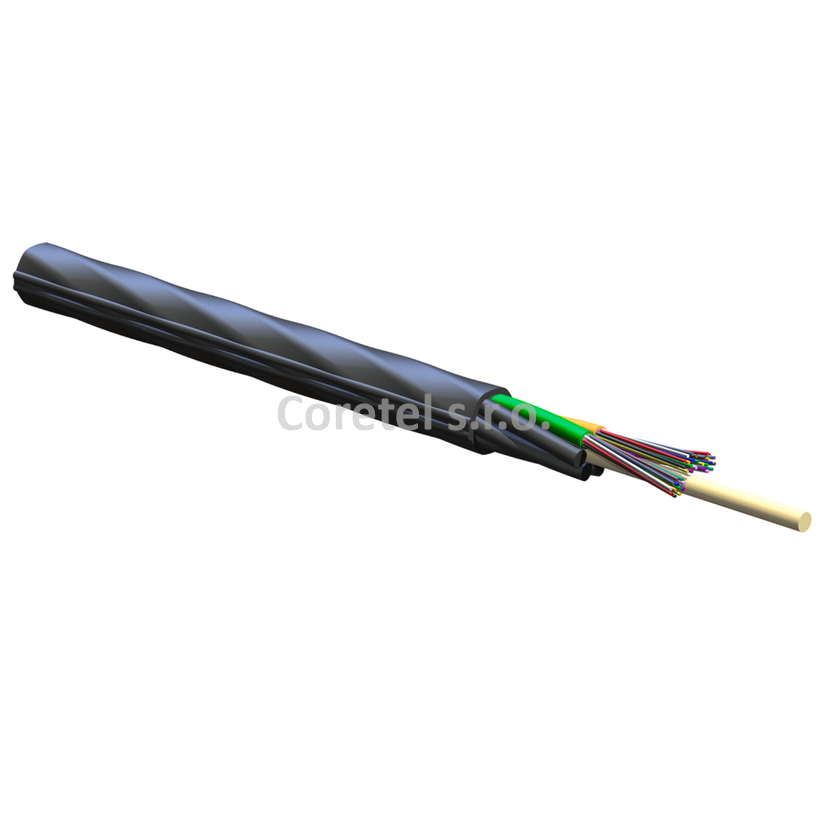

MiniXtend A-DQ(ZN)2Y 6x6 E9 G657A1 LT1.4 - CORNING optický minikábel Loose Tube, 36 vlákno, Corning, vonkajší priemer 5,3mm

(0x)
Výrobca
CORNING
Kód
S1.05COR0182
EAN
Hmotnosť
0,07 kg
Dostupnosť
Na dopyt
Naša cena s DPH
0,70 € /m
Naša cena bez DPH
0,57 €/m
m

Popis

MiniXtend A-DQ(ZN)2Y 6x6 E9 G657A1 LT1.4 - CORNING optický minikábel Loose Tube, 36 vlákno, Corning, vonkajší priemer 5,3mm



Environment Outdoor
Cable Type Stranded Loose Tube Micro Cable
Product Type Dielectric
Fiber Category SMF-28® Ultra fiber
Application Microduct
Fiber Count 36
Standards
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Common Installations Outdoor microduct, indoor when installed according to National Electrical Code® (NEC®) Article 770
Design and Test Criteria IEC 60794-5-10
Corning Recommendations This cable should be placed in microduct for all applications, including aerial.
Environmental Conditions
Temperature Range, Installation -15 °C  to  60 °C    (5 °F  to  140 °F    )
Temperature Range, Operation -40 °C  to  70 °C    (-40 °F  to  158 °F    )
Temperature Range, Storage -40 °C  to  70 °C    (-40 °F  to  158 °F    )

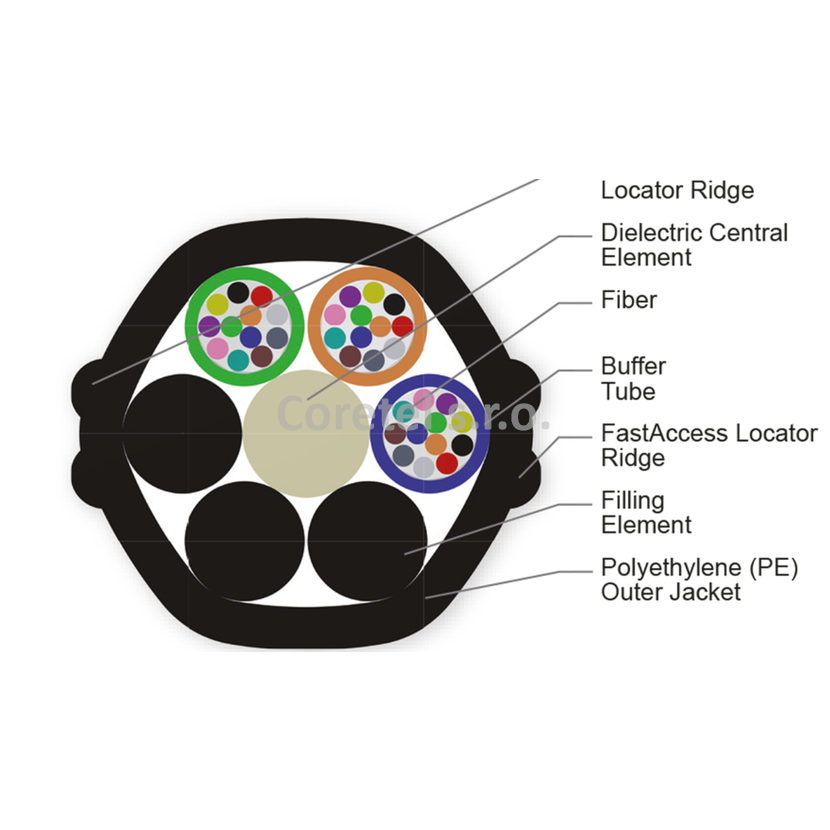

Cable Design
Central Element Dielectric
Fiber Count 36
Outer Jacket Color Black
Outer Jacket Material Polyethylene (PE)
Buffer Tube Color Blue, Orange, Green
Buffer Tube Diameter 1.4 mm (0.06 in)
Number of Active Tubes 3
Number of Filling Elements 3
Number of Tube Positions 6
Fiber Coloring Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube 12
Color Code Standards Telcordia
Mechanical Specifications
Max. Tensile Strength, Short-Term 890 N (200.08 lbf)
Nominal Outer Diameter 5.4 mm  (0.21 in )
Min. Bend Diameter Installation 216 mm (8.5 in)
Min. Bend Diameter Operation 164 mm (6.46 in)
Min. Duct Size Diameter 8 mm (0.31 in)
Optimal Duct Size 10 mm (0.39 in)
Optical Characteristics
Fiber Code Z
Fiber Name SMF-28® Ultra fiber
Fiber Type Single-mode
Performance Option Code 22
Maximum Attenuation 0.34 dB/km / 0.34 dB/km / 0.22 dB/km
Typical Attenuation 0.32 / 0.32 / 0.18
Wavelengths 1310 nm / 1383 nm / 1550 nm
Fiber Category G.652.D/G.657.A1

Parametre

Parametre produktu  MiniXtend A-DQ(ZN)2Y 6x6 E9 G657A1 LT1.4 - CORNING optický minikábel Loose Tube, 36 vlákno, Corning, vonkajší priemer 5,3mm

Typ kábla
Minikabel
Počet vlákien
36
Počet bufferov
6
Typ vlákna
G657A1
Priemer
5,3 mm
Použitie
Zafukovanie do HDPE
