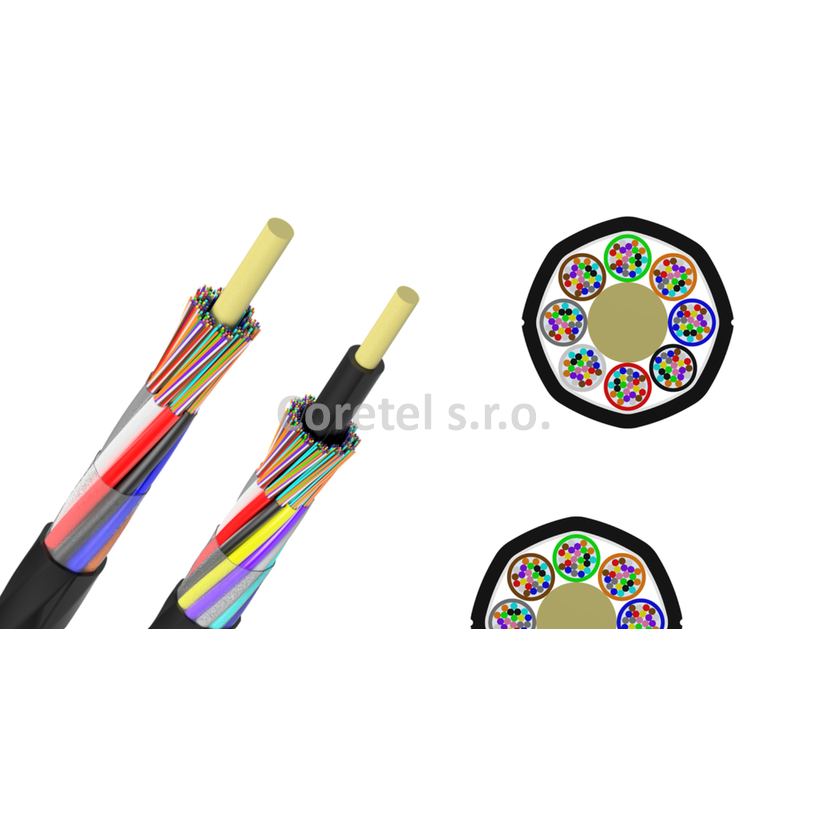

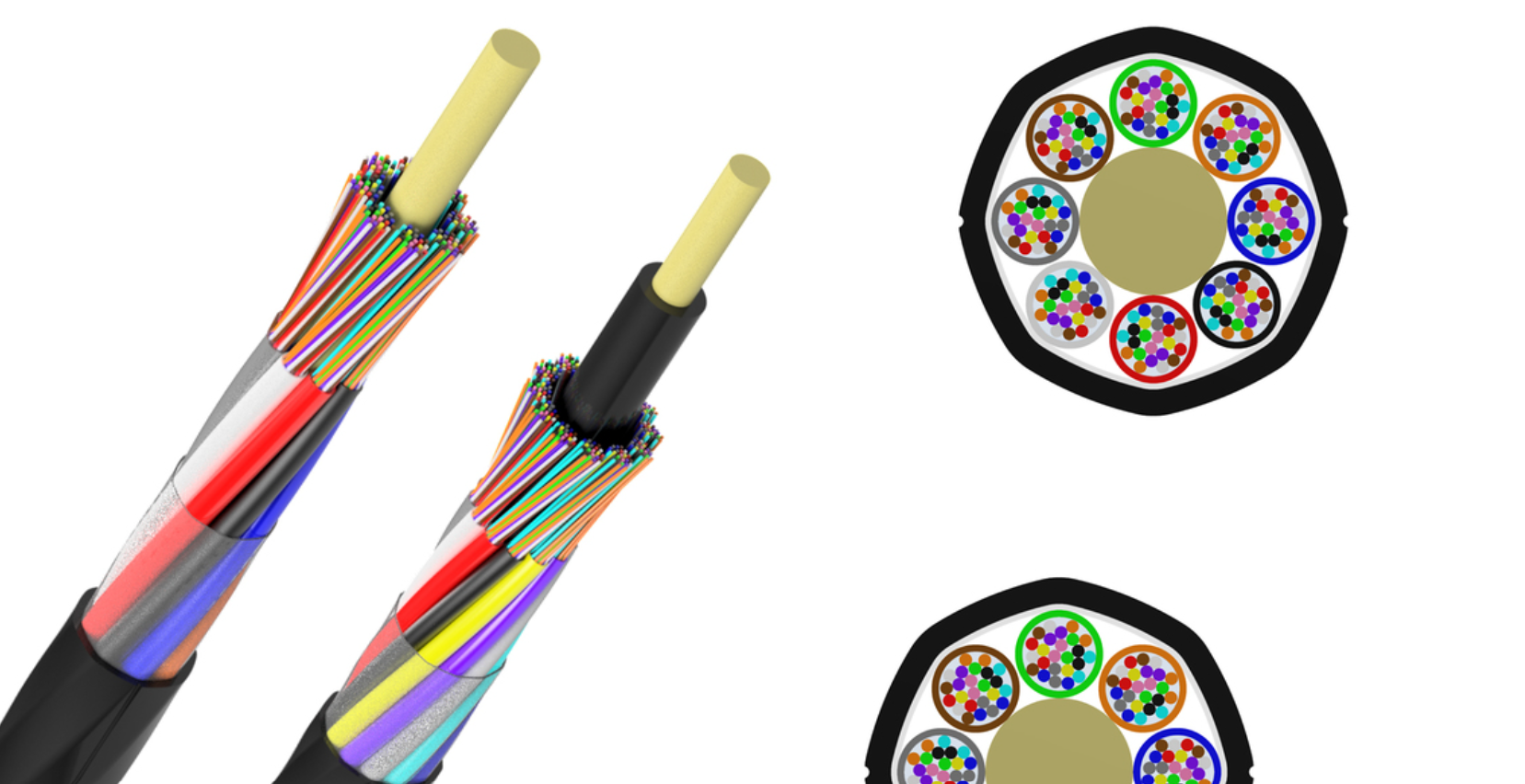

MiniXtend® XD Cable with Binderless* FastAccess™ Technology, A-DQ(ZN)2Y 288 F (12x24), G.657.A1 190, (G.652.D/G.657.A1) - DIN VDE - 288ZH4-Y3C49ADE
(0x)
- Naša cena
Popis
MiniXtend® XD Cable with Binderless* FastAccess™ Technology, A-DQ(ZN)2Y 288 F (12x24), G.657.A1 190, (G.652.D/G.657.A1) - DIN VDE - 288ZH4-Y3C49ADE
| Product Number | 288ZH4-Y3C49ADE |
| Environment | Outdoor |
| Cable type | Stranded Loose Tube Micro Cable |
| Product type | Dielectric |
| Fibre category | G.657.A1 190 |
| Application | Microduct |
Standards
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
Environmental Conditions
| Temperature range, installation | -5 °C to 50 °C |
| Temperature range, operation | -30 °C to 70 °C |
| Temperature range, storage | -40 °C to 70 °C |
Cable Design
| Cable marking | M#H#S#CORNING#Year# MINIXTEND® XD FAB CABLE 12x24 G.657.A1 190 LT1.4#ID number |
| Central element | Dielectric |
| Fibre count | 288 |
| Buffer tube colour coding, layer 1 | Red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange, pink |
| Outer jacket colour | Black |
| Outer jacket material | High Density Polyethylene (HDPE) |
| Outer jacket nominal thickness | 0.4 mm |
| Buffer tube diameter | 1.4 mm |
| Central element diameter | 3 mm |
| Number of active tubes | 12 |
| Number of filling elements | 0 |
| Number of tube positions | 12 |
| Fibres per tube | 24 |
Mechanical Specifications
| Crush resistance | 500 N/10 cm |
| Max. tensile strength, short-term | 1000 N |
| Min. bend radius installation | 164 mm |
| Min. bend radius operation | 123 mm |
| Nominal outer diameter | 8.2 mm |
Optical Characteristics
| Cable cutoff wavelength | 1260 nm |
| Fibre code | Z |
| Fibre name | G.657.A1 Optical fiber with 190-micron outer diameter |
| Fibre Type | Single-mode |
| Fibre compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Performance option code | 49 |
| Cladding diameter | 125 µm |
| Dispersion @ 1550 nm | 18.6 nm |
| Dispersion @ 1625 nm | 23.7 nm |
| Maximum Attenuation | 0.36 dB/km / 0.22 dB/km |
| Mode-Field Diameter at 1310 nm | 9.2 µm |
| Wavelengths | 1310 nm / 1550 nm |
| PMD (Polarization Mode Dispersion) maximum individual fibre | 0.1 ps/(nm*km) |
| Coating diameter | 188 µm |
| Fibre category | G.652.D/G.657.A1 |
Dimensions
| Cable Weight | 66 kg/km |
Ordering Information
| Maximum delivery length | 6000 m |
Parametre
Parametre produktu MiniXtend® XD Cable with Binderless* FastAccess™ Technology, A-DQ(ZN)2Y 288 F (12x24), G.657.A1 190, (G.652.D/G.657.A1) - DIN VDE - 288ZH4-Y3C49ADE
Typ kábla
Mikrokábel
Počet vlákien
288
Počet bufferov
12
Typ vlákna
G657A1
