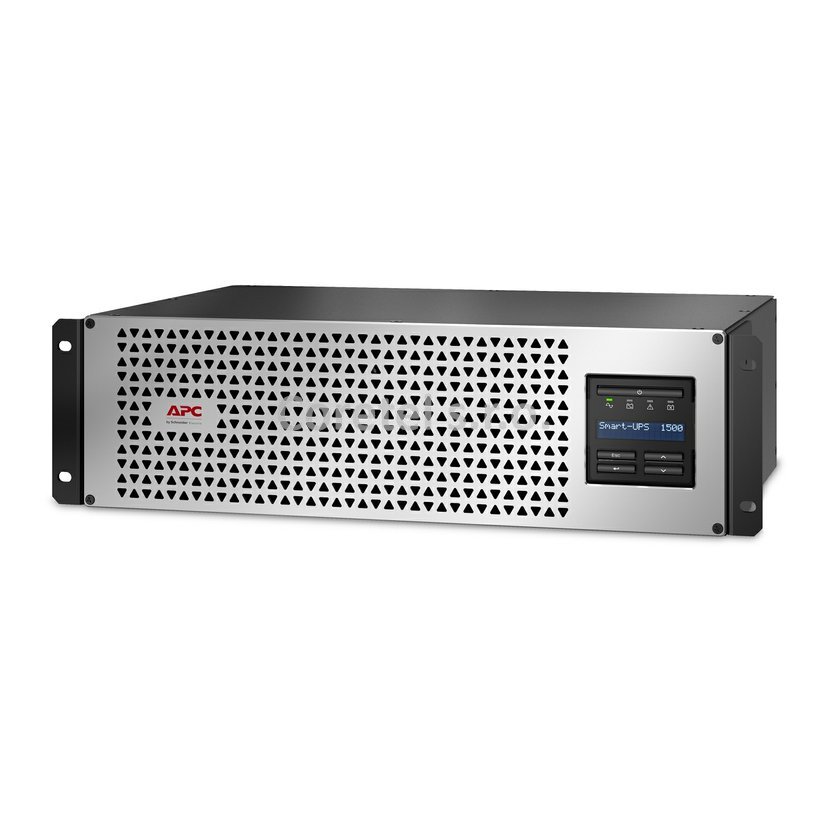

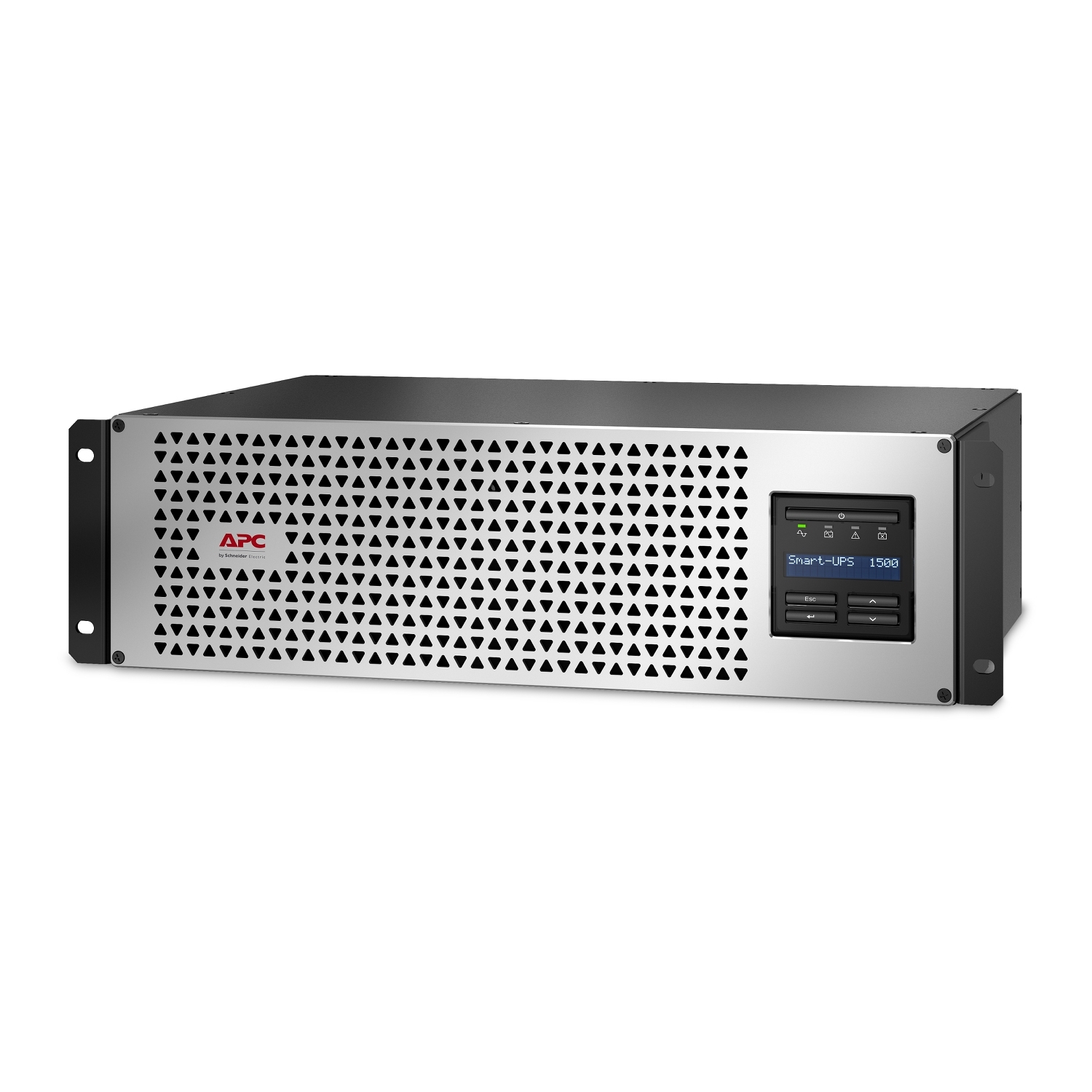

APC Smart-UPS Lithium Ion, 1500VA, Short Depth, 230V so SmartCo





Main

Main Input Voltage 230 V AC 1 phase
Input voltage 220 V
240 V
Input Connection Type IEC 60320 C14
Input protection type Circuit breaker
Input voltage limits 151...302 V adjustable
160...280 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Output voltage 230 V AC 1 phase
Output voltage 220 V
240 V
Rated power in W 1350 W
rated power in VA 1500 VA

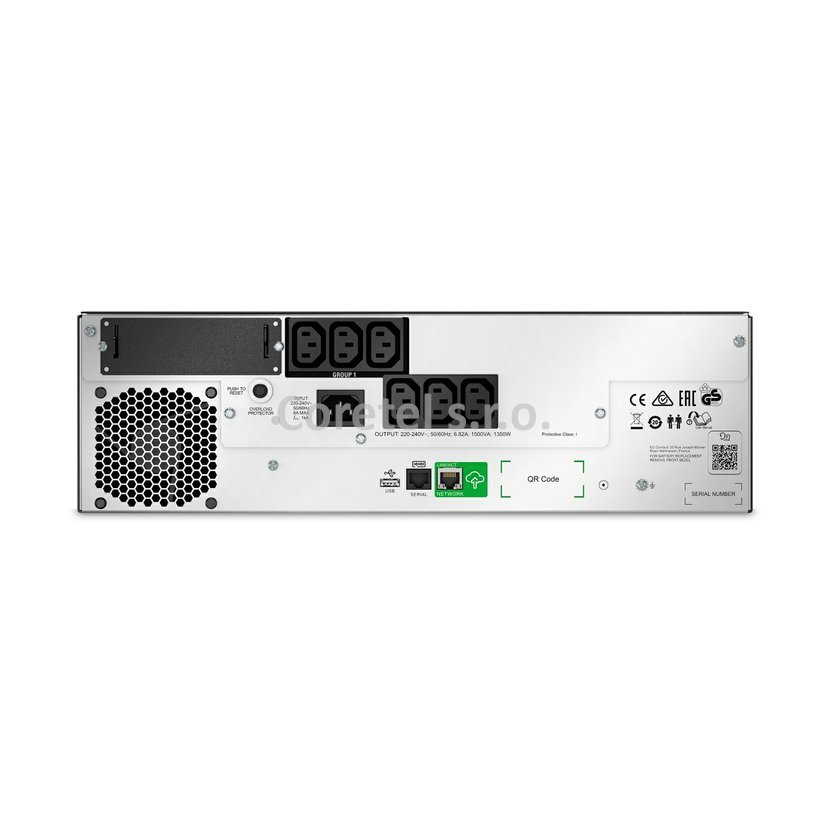

Output connection type 6 IEC 60320 C13
Crest factor 3 : 1
Harmonic distortion Less than 5 %
Maximum configurable power in VA 1500 VA
Maximum configurable power in W 1350 W
Transfer time 6 ms typical : 10 ms maximum
UPS type Line interactive
Wave type Sine wave
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Complementary
Battery type Li-Ion (Lithium-Ion) internal included
Control panel Multifunction LCD status and control console
Free slots 1
Alarm Alarm when on battery : distinctive low battery alarm
UPS connectivity Serial port
USB port
SmartConnect port
Available expansion slot
Surge energy rate 645 J
Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Number of rack unit 3U
Colour Black with silver front bezel
Height 131 mm
Width 438 mm
Depth 302 mm
Net weight 19.5 kg
Mounting preference No preference
Mounting mode Rack-mounted
USB compatible Yes
Mounting mode Rack-mounted with included kit
Provided equipment Installation guide
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Additional specification Cloud-enabled monitoring
Redundant No
Range of product Smart-UPS
Product or component type Uninterruptible power supply (UPS)
Environment
Product certifications CE
CSA
EAC
RCM
UK PSTI
Standards EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0…7620 m
IP degree of protection IP20
Relative humidity 0…95 % non-condensing
Storage Relative Humidity 0…95 % non-condensing
Acoustic level 45 dBA
Heat dissipation 135 Btu/h
Operating altitude 0...10000 ft
Batteries & Runtime
Battery type
Battery graph comments This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v
Extended runtime 0
Battery recharge time 3 h
Battery design life 8…10 year(s)
Battery charger power 100 W rated
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 27.9 cm
Package 1 Width 44.8 cm
Package 1 Length 58.4 cm
Package 1 Weight 22.68 kg
